Sea Sonic

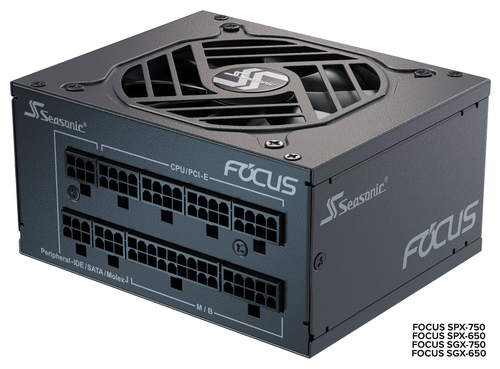

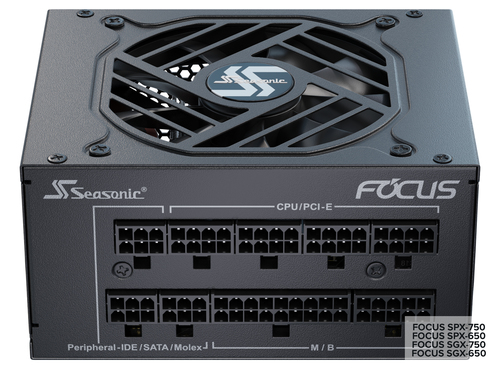

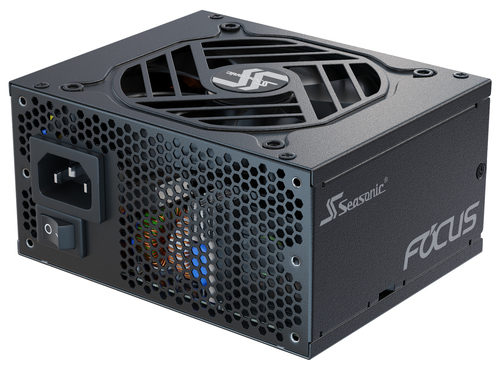

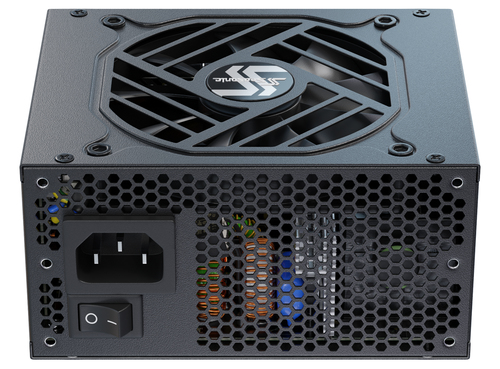

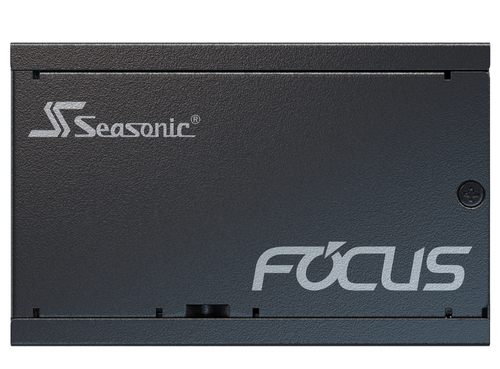

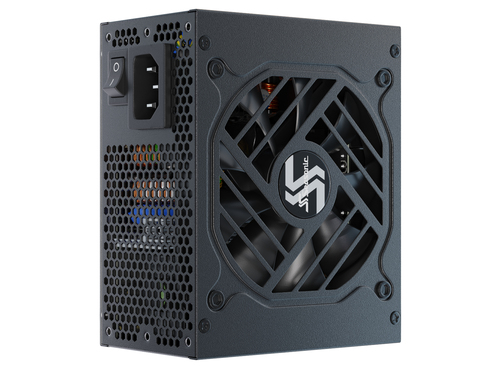

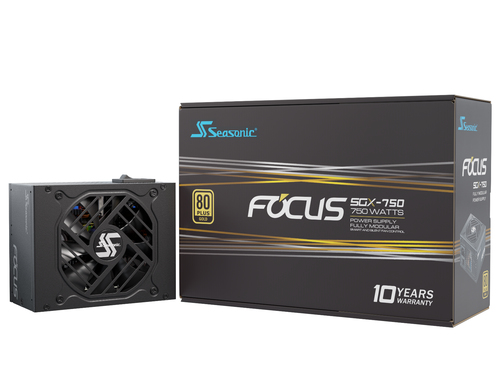

Seasonic FOCUS SGX-750 (2021) power supply unit 750 W 20+4 pin ATX SFX Black
Sea Sonic

£118.47
(1kg = £7,897.77)
plus shipping and customs
Hardware/ Electronic
Sea Sonic
Shipping charges are minimized.
Sea Sonic 1Sea Sonic 2Sea Sonic 3Sea Sonic 4Sea Sonic 5Sea Sonic 6Sea Sonic 7Sea Sonic 8Sea Sonic 916 visitors
are looking at this item
Delivery to US in: 4-8 workdays (only 4 left in stock)
Sales Rank: #1896 in Power Supplies
#25777 in Computer
Style: Power Supplies
Product No.: 2100531522

Compare with similar items

ITEMS
Seasonic FOCUS SGX-750 (2021) power supply unit 750 W 20+4 pin ATX SFX Black
Seasonic Prime PX power supply unit 2200 W 24-pin ATX ATX Black
FSP/Fortron FlexGURU 300W power supply unit 20+4 pin ATX Flex ATX Black
ASUS ROG -THOR-1200P3-WHITE-GAMING power supply unit 1200 W 20+4 pin ATX ATX
Seasonic Prime TX-1600 Noctua Edition power supply unit 1600 W 24-pin ATX ATX Black
  "Sea Sonic-Seasonic FOCUS SGX-750 (2021) power supply unit 750 W 20+4 pin ATX SFX Black-Sea Sonic-Hardware/Electronic" "Sea Sonic-Seasonic Prime PX power supply unit 2200 W 24-pin ATX ATX Black -Seasonic-Adapter/Cable" "Fsp-FSP/Fortron FlexGURU 300W power supply unit 20+4 pin ATX Flex ATX Black-Fsp-Adapter/Cable" "Asus-ASUS ROG -THOR-1200P3-WHITE-GAMING power supply unit 1200 W 20+4 pin ATX ATX -Asus-Hardware/Electronic" "Seasonic-Seasonic Prime TX-1600 Noctua Edition power supply unit 1600 W 24-pin ATX ATX Black -Seasonic-Adapter/Cable"

Item number21005315222101244558210020907021018091572101314927
On offer since02.03.202206.09.202413.01.202126.03.202617.12.2024
Price£118.47£419.51£56.47£417.58£445.04
Weight2.17kg6.02kg0.00kg2.37 kg6.53kg
ManufacturerSea SonicSeasonicFspAsusSeasonic
CategoryHardware/ElectronicAdapter/CableAdapter/CableHardware/ElectronicAdapter/Cable
Total power750 W2200 W300 W1200 W1600 W
AC input voltage100 - 240 V115 - 240 V100 - 240 V100 - 240 V100 - 240 V
Combined power (+3.3V)100 W125 W70 W125 W125 W
Max output current (+3.3V)20 A25 A12 A30 A25 A
Max output current (+12V)62 A183.3 A25 A100 A133.3 A
Max output current (+5V)20 A25 A14 A25 A25 A
Max output current (-12V)0.3 A0.5 A0.3 A0.3 A0.5 A
Max output current (+5Vsb)3 A3 A3 A3 A3 A
Motherboard power connector20+4 pin ATX 24-pin ATX 20+4 pin ATX 20+4 pin ATX 24-pin ATX
Peripheral (Molex) power connectors (4-pin)3 3 2 6 3
Number of SATA power connectors6 10 4 7 4
PurposePC PC Server PC PC
Power supply unit (PSU) form factorSFX ATX Flex ATX ATX ATX
ITEMS
Seasonic FOCUS SGX-750 (2021) power supply unit 750 W 20+4 pin ATX SFX Black
Seasonic Prime PX power supply unit 2200 W 24-pin ATX ATX Black
FSP/Fortron FlexGURU 300W power supply unit 20+4 pin ATX Flex ATX Black
ASUS ROG -THOR-1200P3-WHITE-GAMING power supply unit 1200 W 20+4 pin ATX ATX
Seasonic Prime TX-1600 Noctua Edition power supply unit 1600 W 24-pin ATX ATX Black
Mean time between failures (MTBF)100000 h150000 h100000 h120000 h100000 h
Product colourBlack Black Black White Black
Width125 mm150 mm40.5 mm190 mm210 mm
Depth100 mm210 mm150 mm150 mm150 mm
Height63.5 mm86 mm81.5 mm86 mm86 mm

Other interesting products in Power Supplies
Thermaltake - Thermaltake Toughpower i2000W power supply unit 2000 W 24-pin ATX ATX Black
Thermaltake Toughpower i2000W powe...
Thermaltake

£447.40
Nzxt - NZXT C1500 power supply unit 1500 W 24-pin ATX ATX Black
NZXT C1500 power supply unit 1500 ...
Nzxt

£243.32
Fsp - 1000W FSP Fortron Hydro TI PRO ATX 3.0 80+ TITANIUM
1000W FSP Fortron Hydro TI PRO ATX...
Fsp

£203.02
Cooler Master - Cooler Master X Mighty Platinum 2000W 230V power supply unit 24-pin ATX ATX Black
Cooler Master X Mighty Platinum 20...
Cooler Master

£246.56
Sea Sonic - Power supply Seasonic 1600W PRIME TX-1600 ATX30 Modular (Titan)
Power supply Seasonic 1600W PRIME ...
Sea Sonic

£410.41
Chieftec - Chieftec Vega M PPG-850-C power supply unit 850 W 20+4 pin ATX ATX Black
Chieftec Vega M PPG-850-C power su...
Chieftec

£83.40
Enermax - Power supply Enermax 1200W PlatiGemini 80W Black ATX12VO
Power supply Enermax 1200W PlatiGe...
Enermax

£182.12

Accessories

Description:

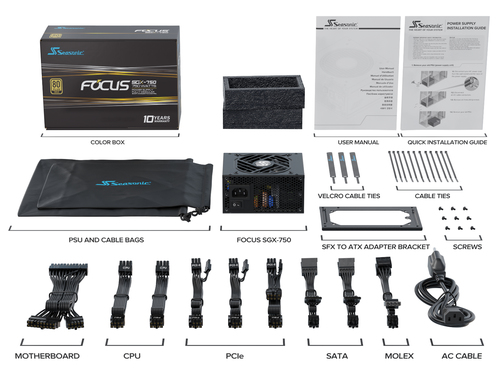

Description:Die FOCUS SGX-Serie von Seasonic ist vielseitig einsetzbar und leistungsstark bei geringem Platzbedarf. Das FOCUS SGX (2021) wird mit einer SFX-zu-ATX-Adapterhalterung ausgeliefert, die es ermöglicht, das Netzteil nicht nur im SFX-Formfaktor-Gehäuse, sondern auch in einem Standard-ATX-Gehäuse zu montieren, falls der Benutzer es vorzieht, mehr Platz für den Luftstrom im PC-Gehäuse zu reservieren. Die Seasonic Hybrid-Lüftersteuerung ist immer aktiviert, um die Kühlung je nach Bedarf zu optimieren.
schwarz, 4x PCIe, Kabel-Management, 750 Watt
Leistung: 750 Watt
Feature: Aktiv-PFC, 80 PLUS Gold
Standard: ATX12V 2.3
Hauptmerkmale Leistung Gesamtleistung 750 W AC Eingangsspannung 100 - 240 V AC Eingangsfrequenz 50/60 Hz Maximaler Eingangsstrom (bei 110V) 10 A Maximaler Eingangsstrom (bei 220V) 5 A Kombinierter Strom (+3.3V) 100 W Kombinierter Strom (+12V) 744 W Kombinierter Strom (+5V) 100 W Kombinierter Strom (-12V) 3,6 W Kombinierter Strom (+5Vsb) 15 W Max. Ausgangsstrom (+3.3V) 20 A Max. Ausgangsstrom (+12V) 62 A Max Ausgangsstrom (+5V) 20 A Max. Ausgangsstrom (-12V) 0,3 A Max. Ausgangsstrom (+5Vsb) 3 A Anschlüsse und Schnittstellen Motherboard Anschlussstecker 20+4 pin ATX Anzahl Molex Anschlüsse 4pin 3 Stromkabellänge Motherboard 35 cm Anzahl SATA Stromstecker 6 SATA-Netzkabellänge 600 mm Periphere (Molex) Netzkabellänge 470,700 mm CPU Stecker (4+4 pin) Ja CPU-Leistung Kabellänge 40 cm Kabeltyp Modular Leistungen Zweck PC Stromversorgungseinheit (PSU) Formfaktor SFX 80 Plus Zertifizierung 80 PLUS Gold Mittlere Betriebsdauer zwischen Ausfällen (MTBF) 100000 h Design Produktfarbe Schwarz Kühlung
Weee-Nr.: 54978142
The FOCUS SGX-750 by Seasonic is a high-performance, fully modular PC power supply unit designed for demanding users who value efficiency, reliability, and compact design. With an 80 PLUS Gold certification, it delivers up to 90% energy efficiency at typical loads, reducing electricity consumption and heat output. The SFX-L form factor makes it ideal for small form factor builds without compromising on power delivery'offering a robust 750W output suitable for gaming PCs, workstations, or any system requiring stable performance under heavy loads. Key features include premium Japanese capacitors for long-term durability, silent operation with Seasonic's advanced fan control technology (hybrid silent mode), comprehensive protection circuits (OPP/OVP/SCP/UVP/OCP/OTP), and full modularity for easy cable management. Seasonic is renowned globally as a pioneer in PSU innovation since 1975 and maintains strict environmental standards through RoHS compliance and eco-friendly manufacturing processes. By choosing the FOCUS SGX-750, customers support sustainable practices while ensuring their systems run efficiently'a positive contribution to both personal computing needs and the environment.
Manufacturer No.: FOCUS-SGX-750
Product Safety

Technical specifications

Language

Logistics data

Harmonized System (HS) code84733020

Design

Product colourBlack
Cooling typeActive

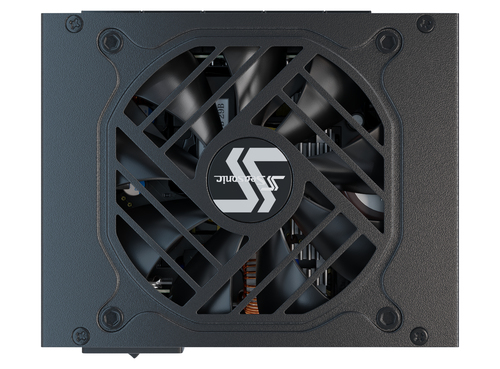

Fan diameter9.2 cm
Number of fans1 fan(s)

Performance

PurposePC
Power supply unit (PSU) form factorSFX
80 PLUS certification80 PLUS Gold
Mean time between failures (MTBF)100000 h

Packaging data

Package typeBox

Ports & interfaces

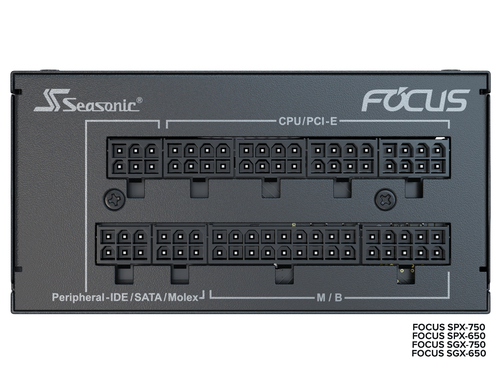

Motherboard power connector20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)3
Motherboard power cable length35 cm
Number of SATA power connectors6
SATA power cable length600 mm
Peripheral (Molex) power cable length470,700 mm
CPU power connector (4+4 pin)Yes
CPU power cable length40 cm
Cabling typeFully-Modular

Weight & dimensions

Width125 mm
Depth100 mm
Height63.5 mm

Operational conditions

Operating temperature (T-T)0 - 50 °C

Power

Total power750 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Maximum input current (@110V)10 A
Maximum input current (@220V)5 A
Combined power (+3.3V)100 W
Combined power (+12V)744 W
Combined power (+5V)100 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)62 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
